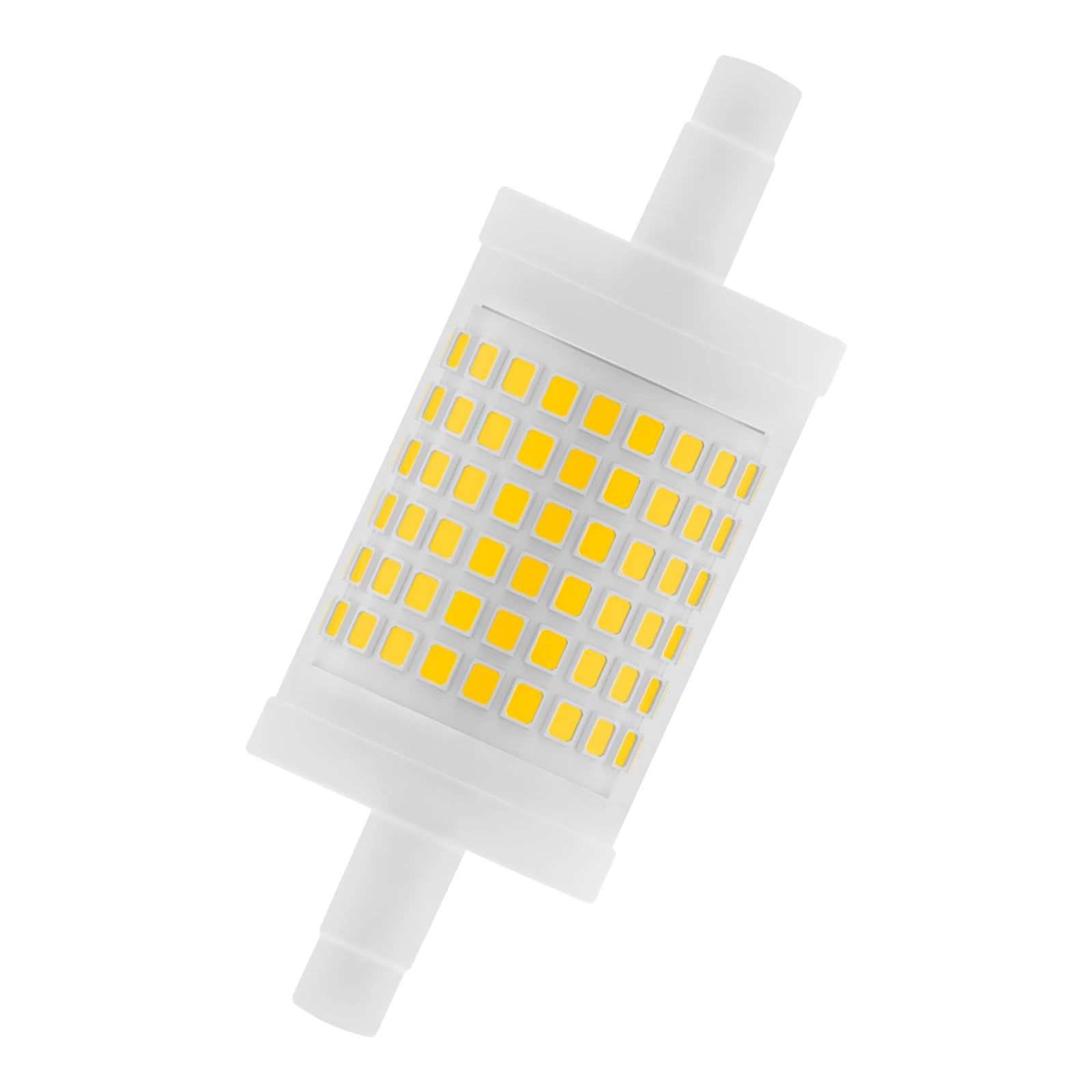

LED LINE DIM R7s 78mm 12W (100W) 1521lm 827
Article number: 146285
LEV LED R7s 28x78mm 12W 2700K 1521lm (100W) Dimmable 220V 300° double-ended excentric base LED-lamp
Dimmable double-ended special LED lamps. Fits into most R7s luminaires thanks to excentric base. Good all-around light emission. Lower thermal output (compared with the standard reference product). Dimmable (with many common dimmers, see also www.ledvance.com/dim). LED alternative to conventional R7s lamps. Good quality of light; color rendering index Ra ≥ 80; constant chromaticity.
Data not available (yet). Please contact our sales department for more information.
General ETIM properties
ETIM group
Lamps
ETIM class
LED-lamp/Multi-LED
Name
LED LINE DIM R7s 78mm 12W (100W) 1521lm 827
Brand
OSRAM
Productseries
LED LINE R7s DIM P
Producttype
LED Line 78 100 300° DIM P 12W 827
GTIN
4099854064876
Manufacturer articlenumber
4099854064876
ETIM specifications
Socket
R7s
Luminous flux [lm]
1521 - 1521
Nominal voltage [V]
220 - 220
Lamp power [W]
12 - 12
Colour temperature [K]
2700 - 2700
Diameter [mm]
28
Length [mm]
78
Dimmable
Yes
Lamp shape
Tube, double-ended
Beam angle [°]
300 - 300
Colour
Multi-coloured
Type of glass/cover
Clear
Lamp designation
Other
Colour rendering index CRI
80-89
Voltage type
AC
Filament lamp
No
Rated luminous flux according to IEC 62612 [lm]
1521
Power factor
0.5
Lamp efficacy [lm/W]
126
Nominal current [mA]
51 - 51
Colour of light according to EN 12464-1
Warm white < 3300 K
Housing colour
White
Average nominal lifetime [h]
25000
Degree of protection (IP)
IP20
Energy efficiency class
E
Colour consistency (McAdam ellipse)
SDCM6
Min. number of switching cycles
100000
Weighted energy consumption in 1000 hours [kWh]
12
Remote operation possible
No
With movement sensor
No
With remote control
No
Photobiological safety according to EN 62471
RG0
Compatible with Apple HomeKit
No
Compatible with Google Assistant
No
Compatible with Amazon Alexa
No
IFTTT support available
Yes
Suitable for electronic ballast
No
Suitable for magnetic ballast
No
Dimming phase cut-off (trailing edge)
Yes
Dimming phase cut-on (leading edge)
Yes
Dimming Touch and Dim
No
Dimming Zigbee
No
Dimming Bluetooth
No
Dimming Wi-Fi
No
No dim function
No
With twilight switch
No
