LED Spot AR70 GU10 DIM 7W (75W) 680lm 927 24°

Article number: 145221

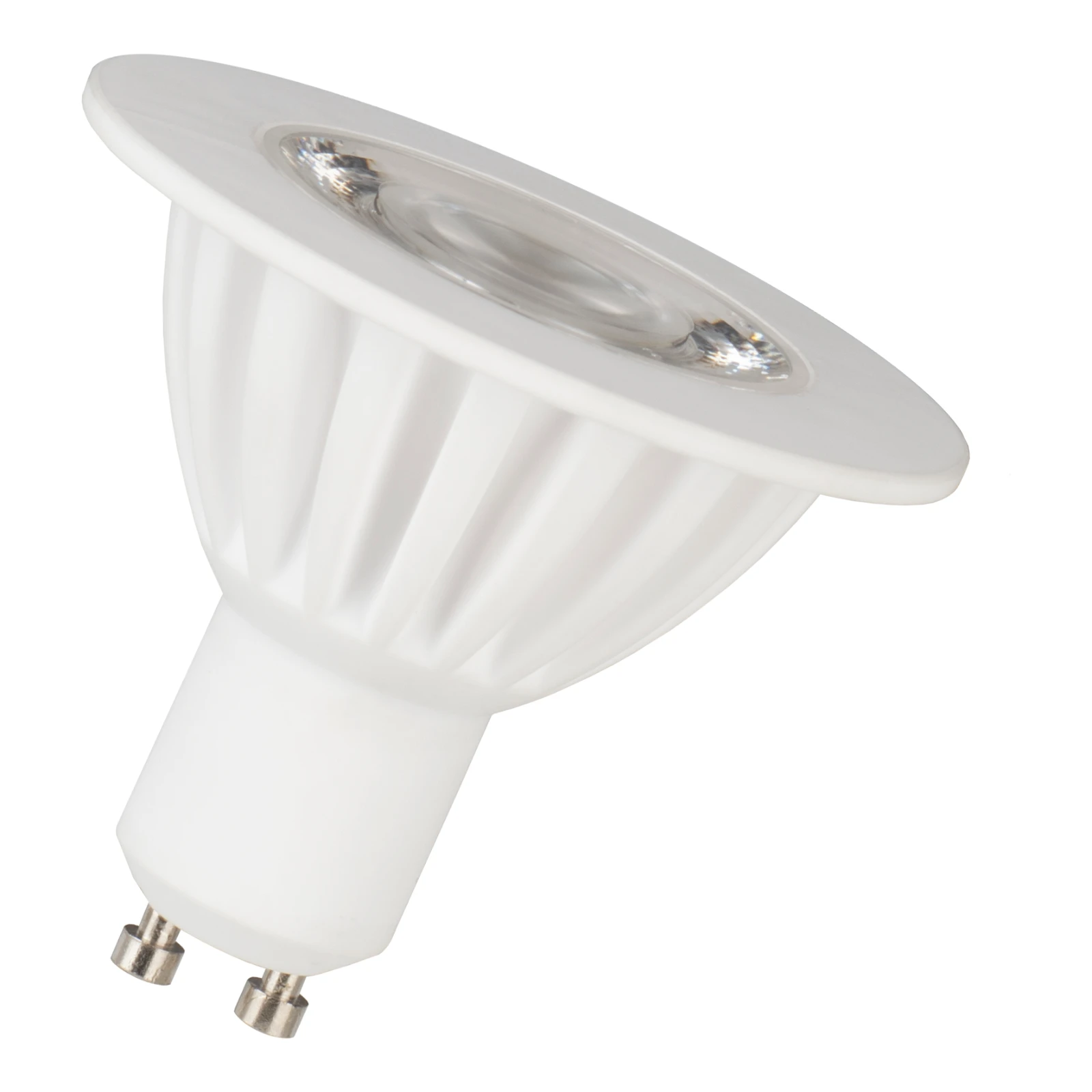

BAI BaiSpot LED Reflector AR70 GU10 7W 2700K 24° 680lm (75W) Dimmable 220-240V 70x63mm Ceramic body LED-lamp

The so-called LED spots from the BaiSpot series are characterized by a much longer lifespan and significantly less energy consumption than their halogen predecessors. Due to the compact design, they are easily interchangeable. This lamp is ideal for use in typical AR70 applications such as general lighting in shops, restaurants, and public buildings. With the right dimmer, these lamps are dimmable. Consult the dimmer list on the Bailey site for this. We recommend the Bailey Wonderwall wall dimmer. Ambient temperature range: -20°C to +40°C.

Data not available (yet). Please contact our sales department for more information.

Request a quote for this article

Click here for Eprel specifications

General ETIM properties

ETIM group
Lamps
ETIM class
LED-lamp/Multi-LED
Name
LED Spot AR70 GU10 DIM 7W (75W) 680lm 927 24°
Brand
Bailey
Productseries
BaiSpot LED MV
Producttype
AR70 GU10
GTIN
8714681452219
Manufacturer articlenumber
145221

ETIM specifications

Socket
GU10
Luminous flux [lm]
680 - 680
Nominal voltage [V]
220 - 240
Lamp power [W]
7 - 7
Colour temperature [K]
2700 - 2700
Diameter [mm]
70
Length [mm]
63
Dimmable
Yes
Lamp shape
Reflector
Beam angle [°]
24 - 24
Colour
White
Type of glass/cover
Prism
Lamp designation
Other
Colour rendering index CRI
90-100
Voltage type
AC
Filament lamp
No
Luminous intensity [cd]
2000
Rated luminous flux according to IEC 62612 [lm]
680
Power factor
0.9
Lamp efficacy [lm/W]
97
Nominal current [mA]
32 - 32
Colour of light according to EN 12464-1
Warm white < 3300 K
Housing colour
Colourless
Average nominal lifetime [h]
15000
Degree of protection (IP)
IP20
Energy efficiency class
E
Colour consistency (McAdam ellipse)
SDCM6
Min. number of switching cycles
25000
Weighted energy consumption in 1000 hours [kWh]
7
Remote operation possible
No
With movement sensor
No
With remote control
No
Photobiological safety according to EN 62471
RG1
Compatible with Apple HomeKit
No
Compatible with Google Assistant
No
Compatible with Amazon Alexa
No
IFTTT support available
No
Suitable for electronic ballast
No
Suitable for magnetic ballast
No
Dimming phase cut-off (trailing edge)
Yes
Dimming phase cut-on (leading edge)
Yes
Dimming Touch and Dim
No
Dimming Zigbee
No
Dimming Bluetooth
No
Dimming Wi-Fi
No
No dim function
No
Energy efficiency class according to EU regulation 2019/2015
E
With twilight switch
No
Downloads
Dimmer compatibility list
BAI_DCL_145221.pdf
