LED Floodlight Billboard AS 16W 1800lm 3000K Black 50cm

Article number: 145182

BAI LED Floodlight Billboard Asymmetrical 16W 1800lm Ra70 3000K 130°x50° Black + 50cm wall mount IP66 100-240V 141x208x716mm

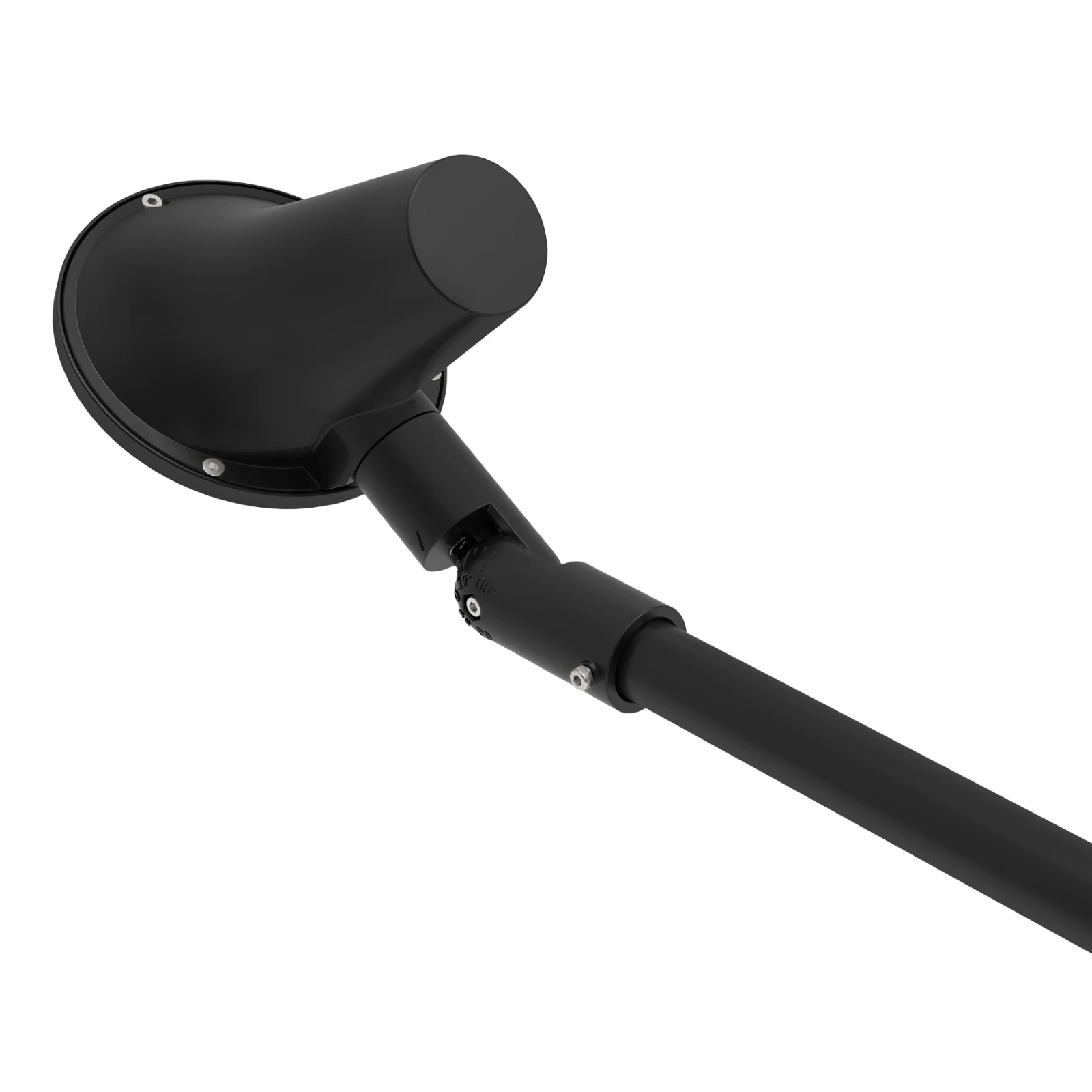

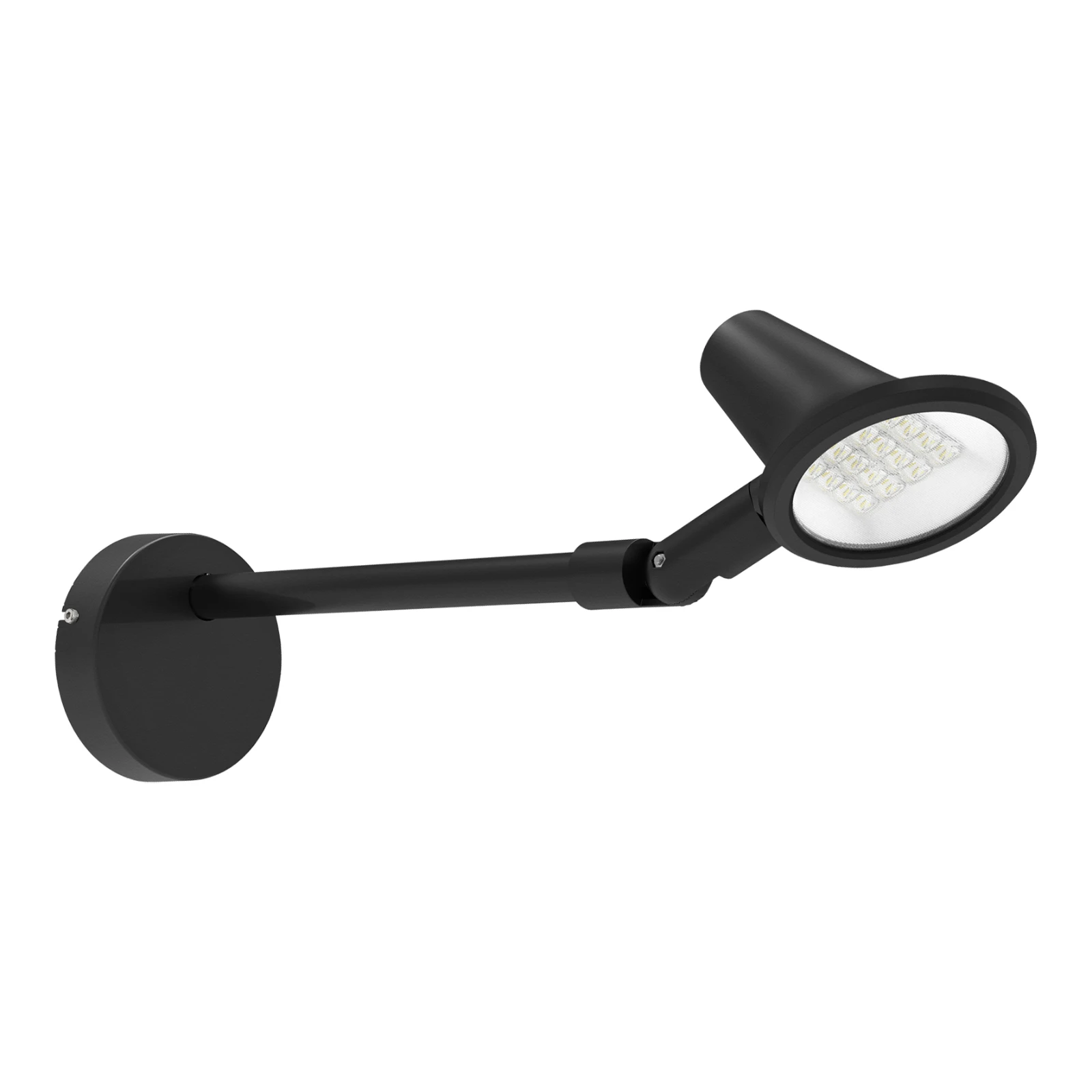

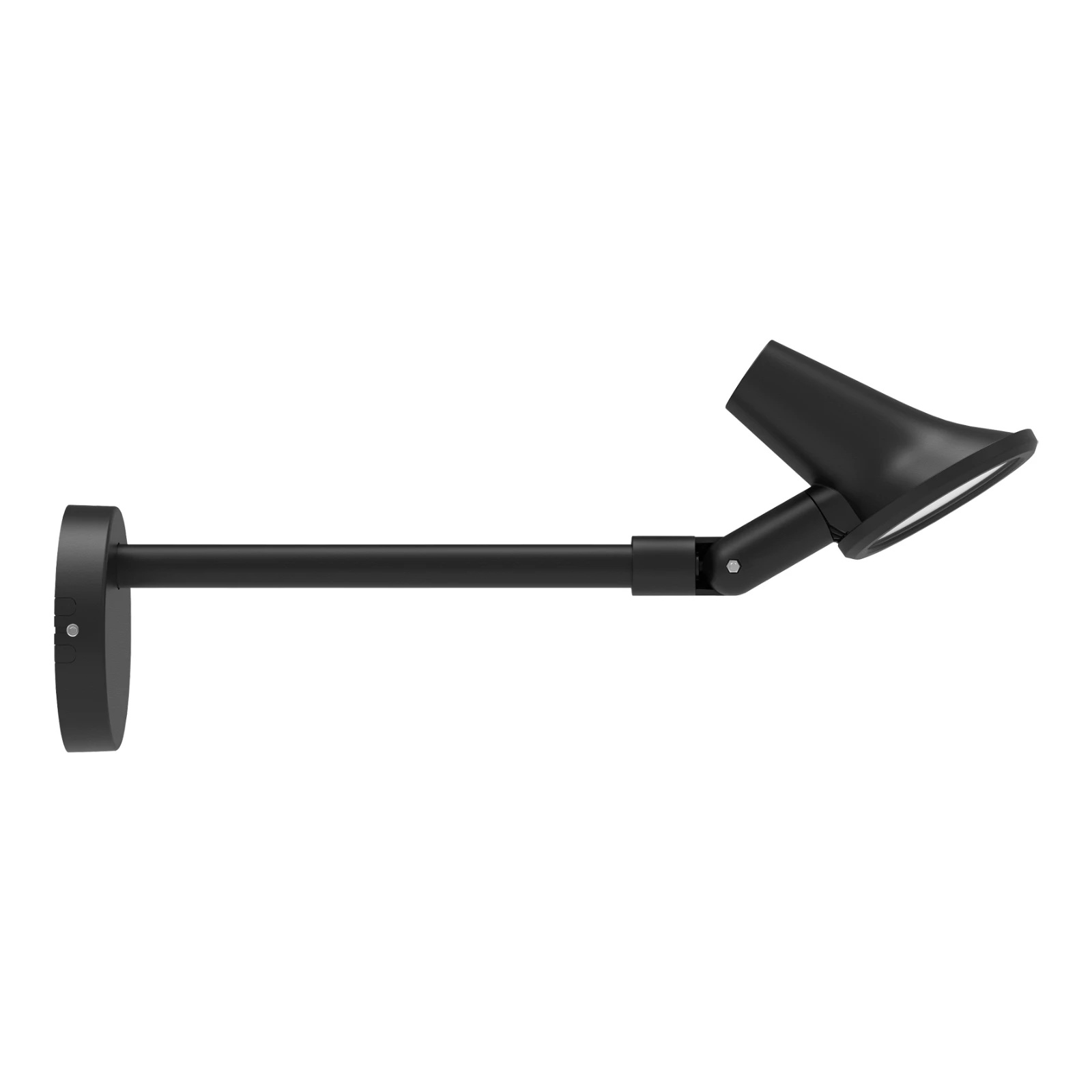

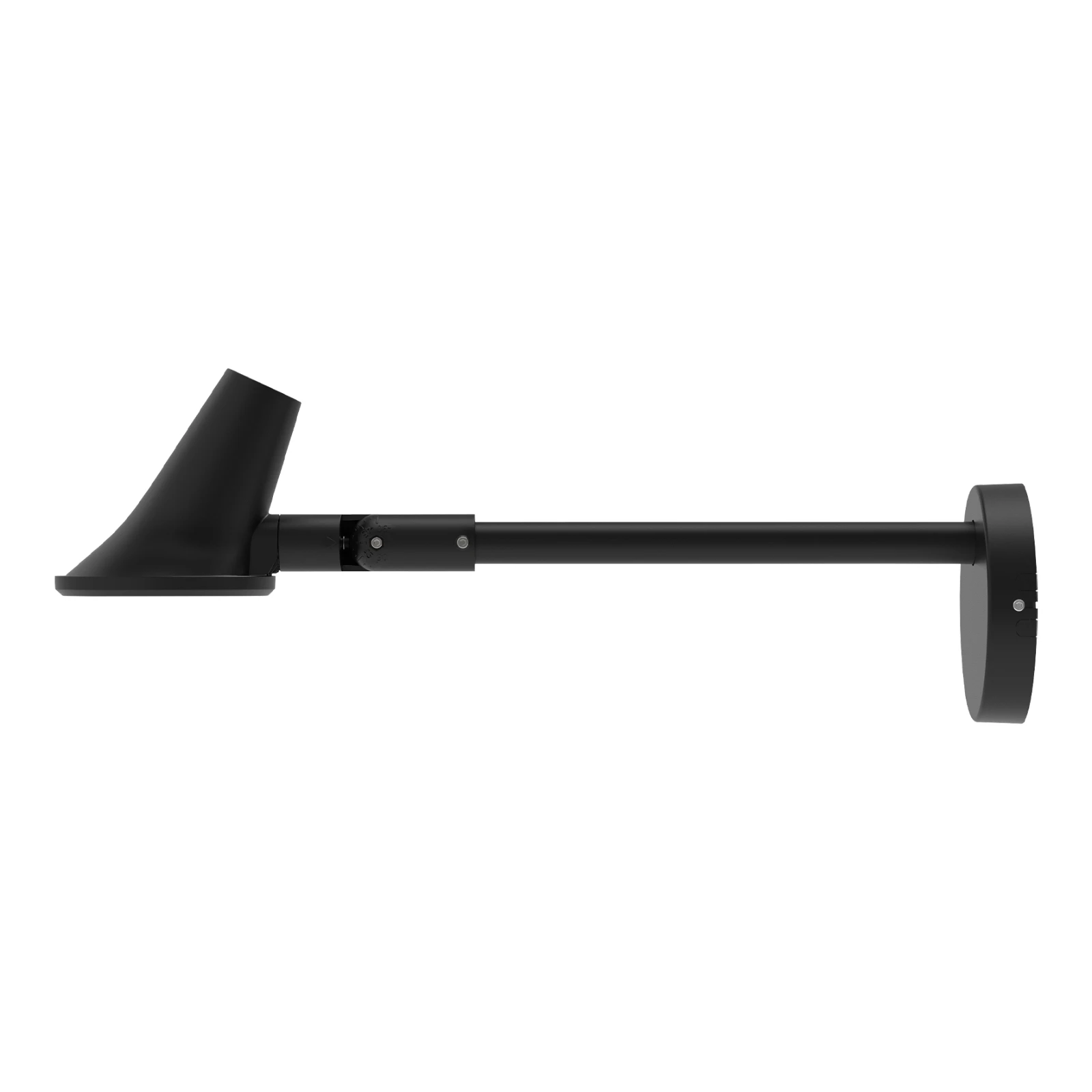

The Bailey Lights LED Floodlight Billboard AS is also called display fixture, wall wash or billboard lighting. If you can beautifully illuminate a billboard, you can illuminate facades, shops or other outdoor objects just as beautifully with this concentrated asymmetrical light beam (130°x50°). The aluminum housing (available in black and white) has a special coating (AkzoNobel) and is corrosion resistant. This LED floodlight is IP66 classified and CLII double insulated. The integrated wall support with arm is 50cm and can be turned 90° and is 360° rotatable. Available in the light colors 3000K and 4000K (1800 and 1950 lm respectively). Very easy to assemble. Ambient temperature: -20°C to +50°C.

Please read the manual before use. As surge protection till 10kV we advise our item number 140440.

Data not available (yet). Please contact our sales department for more information.

Request a quote for this article

Click here for Eprel specifications

General ETIM properties

ETIM group
Luminaires
ETIM class
Downlight/spot/floodlight
Name
LED Floodlight Billboard AS 16W 1800lm 3000K Black 50cm
Brand
Bailey
Productseries
LED Floodlight
Producttype
Billboard AS
GTIN
8714681451823
Manufacturer articlenumber
145182

ETIM specifications

Luminous flux [lm]
1800 - 1800
Max. system power [W]
17
Colour temperature [K]
3000 - 3000
Nominal voltage [V]
100 - 240
With movement sensor
No
Lamp holder
None
Suitable for surface mounting
Yes
Suitable for built-in mounting
No
Suitable for wall mounting
Yes
Suitable for suspended mounting
No
Suitable for ceiling mounting
Yes
Suitable for traverse mounting
No
Suitable for pedestal/floor mounting
No
Suitable for light-track mounting
No
Suitable for clamp-mounting
No
Suitable for low voltage cable system
No
Adjustability
Rotating and swivelling
With light sensor
No
Lamp type
LED not exchangeable
With light source
Yes
Housing material
Aluminium
Surface protection
Powder coating
Housing colour
Black
Material cover
Plastic matt/satinized
Surface brushed
No
Voltage type
AC
LED nominal current at constant current [mA]
600 - 600
Type of control gear
LED operating device current-controlled
With control gear
Yes
Exchangeable control gear
No
Dimming depending on control gear
No
Dimming 0-10 V
No
Dimming 1-10 V
No
Dimming DALI-2
No
Dimming DALI
No
Dimming DMX
No
Dimming DSI
No
Dimming potentiometer (integrated)
No
Dimming GPRS
No
Dimming LineSwitch
No
Dimming manufacturer's proprietary system
No
Dimming mains voltage modulation
No
Dimming phase cut-off (trailing edge)
No
Dimming phase cut-on (leading edge)
No
Dimming programmable
No
Dimming RF
No
Dimming Touch and Dim
No
Dimming Zigbee
No
Dimming with push-button
No
No dim function
Yes
Reflector
Matt
Light distributor
Focal lens
Light distribution
Asymmetric
Beam angle
> 80° - Extreme wide beam
Light outlet
Direct
Colour rendering index CRI
70-79
Energy efficiency class of the built-in lamp
Other
Total harmonic distortion
20
Rated lifetime L70/B50 at 25 °C [h]
50000
Rated life time L80/B10 at 25 °C [h]
40000
Lumen maintenance at median useful life of 35,000 h at 25 °C ambient (tq) [%]
96
Degree of protection (IP)
IP66
Degree of protection (NEMA)
Other
Impact strength
IK08
Protection class according to IEC 61140
II
Rated ambient temperature according to IEC 62722-2-1 [°C]
-20 - 50
Suitable for lamp power [W]
16 - 16
Colour of light
White
Emergency power supply system
None
Rated luminous flux according to IEC 62722-2-1 [lm]
1800
Luminous intensity [cd]
1202
Flickering value Pst LM
0.5
Constant light output (CLO)
No
Colour of light adjustable
No
Luminous flux adjustable
No
Beam angle adjustable
No
Stroboscope effect value SVM
0.9

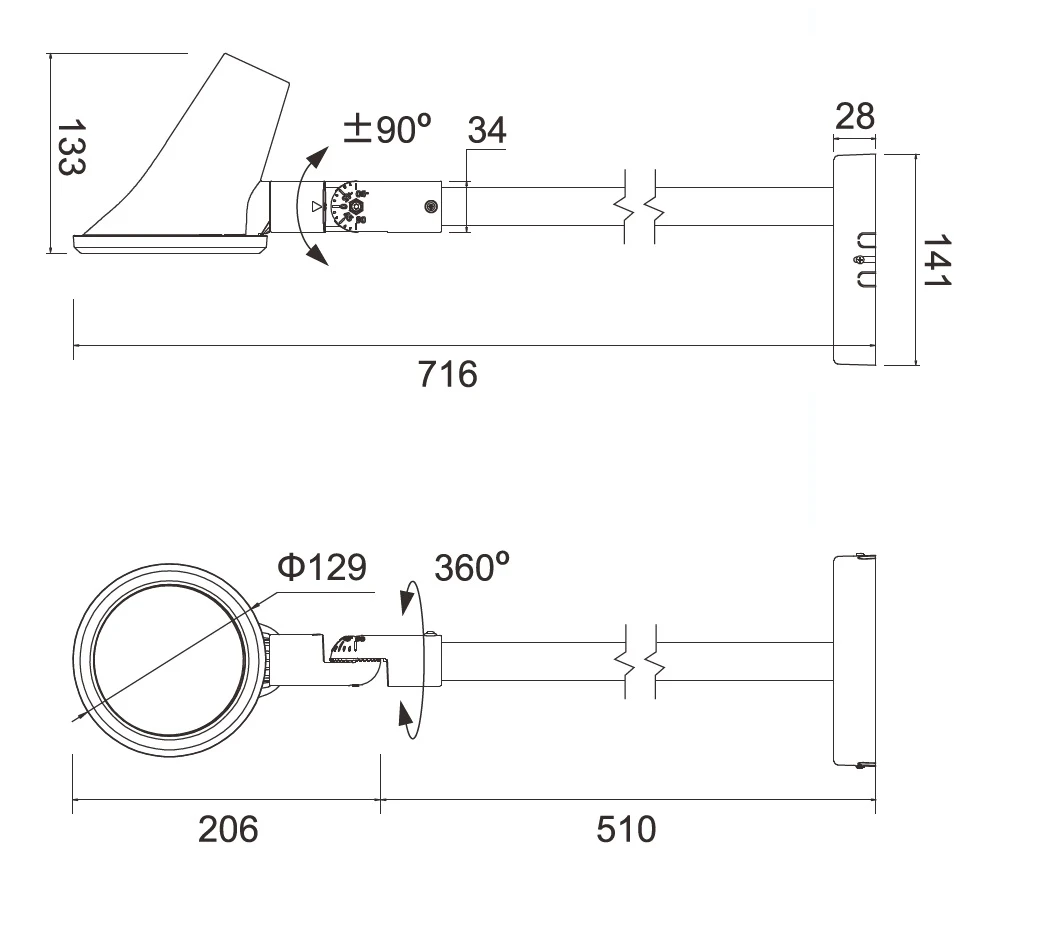

Width [mm]
141
Height/depth [mm]
208
Length [mm]
716
Type of wiring
Ending
Conductor cross section [mm²]
1
Connectable conductor cross section [mm²]
1 - 1.5
Connection type
Free conductor end
Power factor
0.9
Emergency power supply integrated
No
Filament test according to IEC 60695-2-11
None
Luminaire efficacy [lm/W]
106
Photobiological safety according to EN 62471
RG1
Dimmable
No
Luminaire with limited surface temperature, sign "D“ according to EN 60598-2-24
No
Covering of the luminaire with thermally insulating material possible
Yes
Number of poles
2
Suitable for workplace according to EN 12464-1
Yes
Nominal current [mA]
600 - 600
Energy efficiency class of the light source according to EU regulation 2019/2015
E
Compatible with Apple HomeKit
No
Colour consistency (McAdam ellipse)
SDCM3
Dimming Sine Wave Reduction
No
Compatible with Google Assistant
No
Compatible with Amazon Alexa
No
With presence detector
No
IFTTT support available
No
Containing product according to 2019/2020/EU
No
Degree of protection (IP), rear side
Other
Degree of protection (IP), front side
IP66
Operation by Bluetooth
No
Total harmonic distortion (THD) [%]
20
Rated luminous flux according to IEC 62722-2- 1 [lm]
1800 - 1800
Luminaire efficacy [lm/W]
106 - 106
Luminous intensity [cd]
1202 - 1202
Compatible with Casambi
No
UK Building Regs Part B fire rated - 30 minutes
No
UK Building Regs Part B fire rated - 60 minutes
No
UK Building Regs Part B fire rated - 90 minutes
No
Downloads
Manual
IM_LedFloodlightBillboard-03.pdf
LDT-files
LDT_LedFloodlightBillboardAS_16W3000K.ldt
