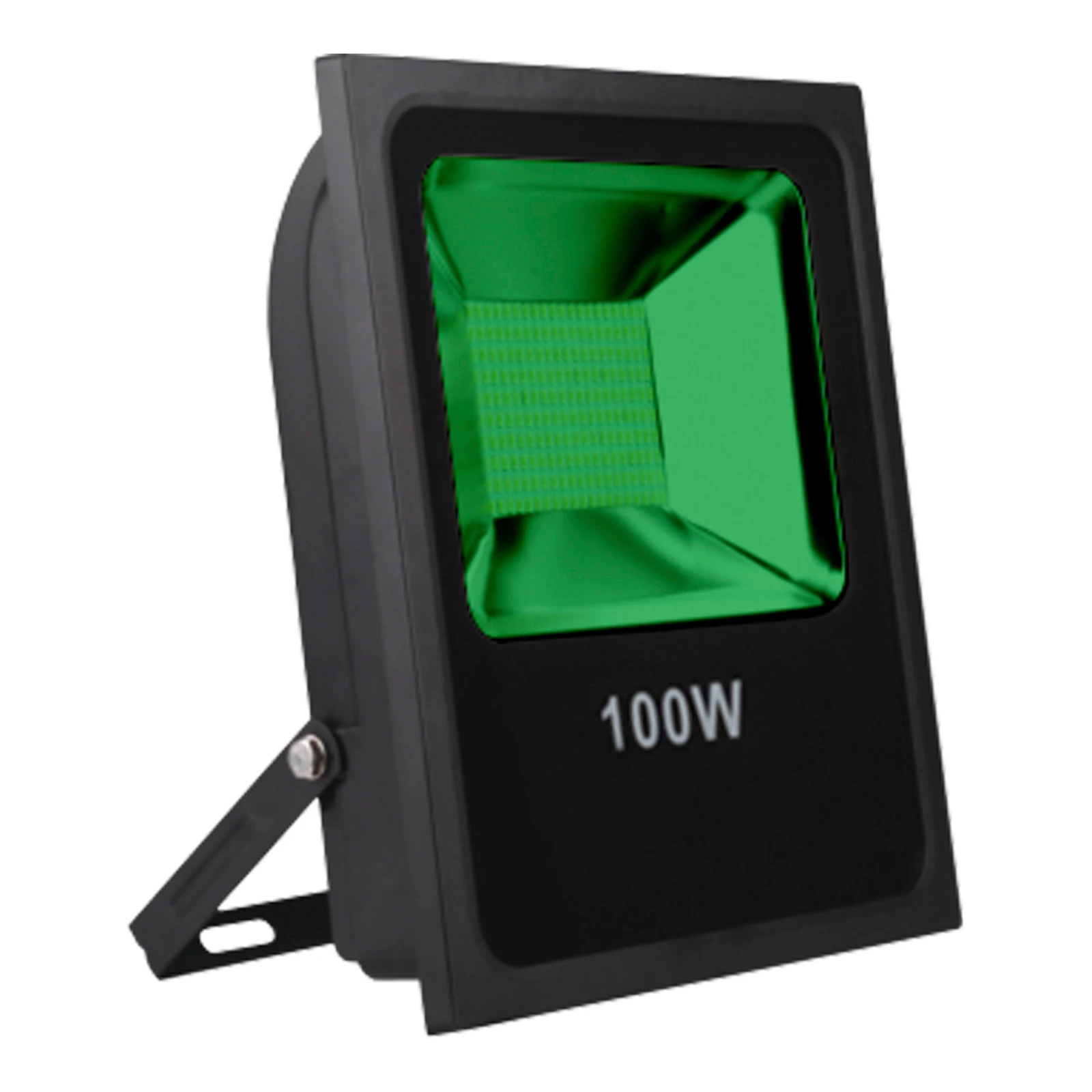

LED Floodlight Colour 100W Green 100V-260V IP65

Article number: 144971

BAI BaiColour LED Floodlight 100W Green 7000lm 100-260V IP65 IK06 3A 4KV 50/60Hz Alu housing black Clear Glass 120° 0.5m cable LED Floodlight

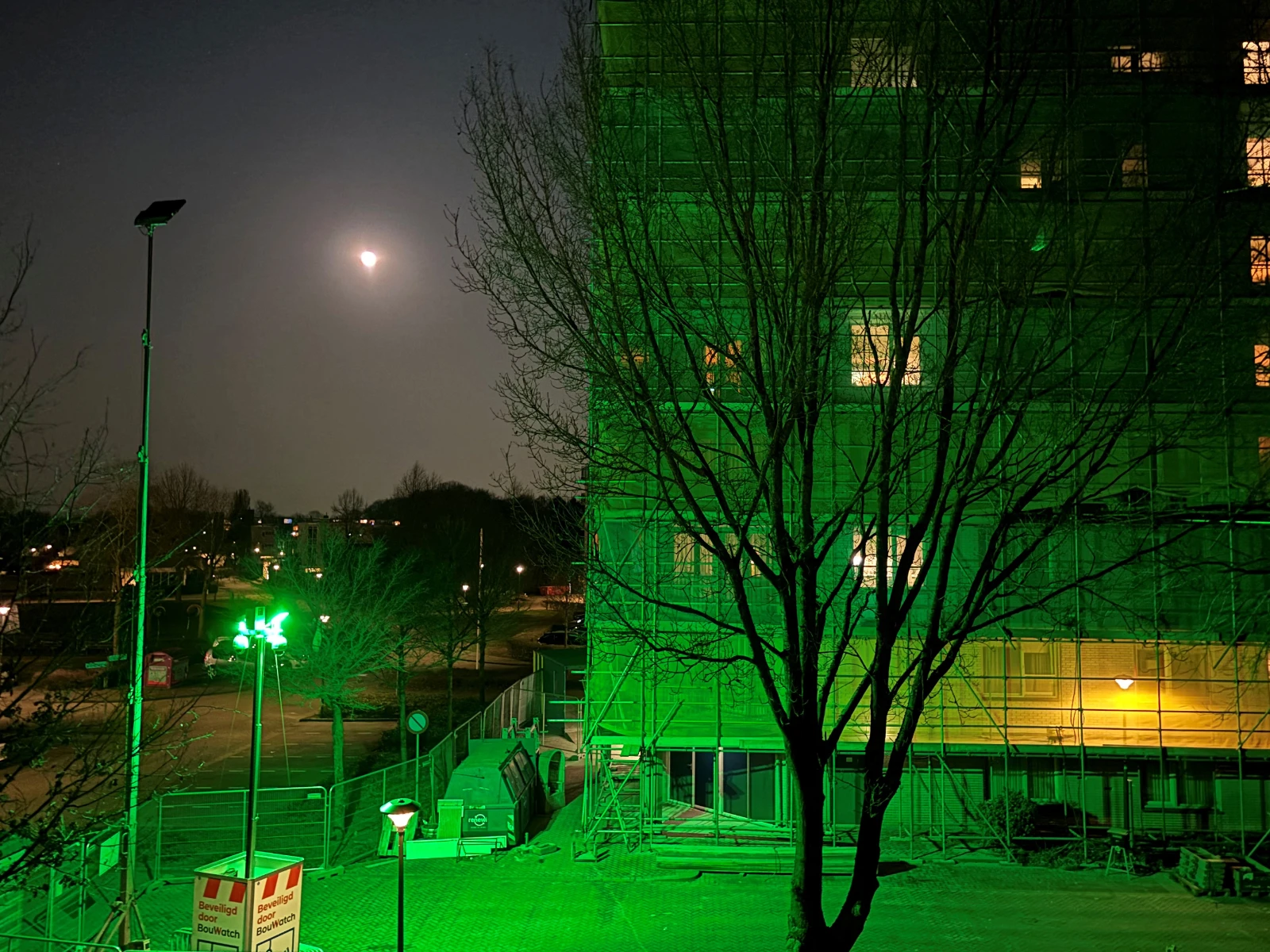

The Floodlight is also called a spotlight or construction lamp. The Led version consumes little power and lasts a long time so that they are more durable than the traditional predecessors. The housing is made of cast aluminum. The baiColour series brings a single-color spotlights for decorative lighting. In addition to a decorative application, this floodlight is also extremely suitable as security lighting. Benefits of green light: Friendly to the environment, less light pollution, better for flora and fauna, less annoying for neighbors and good for security cameras. Comes with 50cm connection cable. Suitable for ambient temperatures from -20°C to +45°C. Consult specifications and warranty for installation.

No longer available!

Data not available (yet). Please contact our sales department for more information.

Request a quote for this article

General ETIM properties

ETIM group
Luminaires
ETIM class
Downlight/spot/floodlight
Name
LED Floodlight Colour 100W Green 100V-260V IP65
Brand
Bailey
Productseries
LED Floodlight colour
Producttype
Green
GTIN
8714681449714
Manufacturer articlenumber
144971

ETIM specifications

Luminous flux [lm]
7000 - 7000
Max. system power [W]
102
Nominal voltage [V]
100 - 260
With movement sensor
No
Lamp holder
None
Suitable for surface mounting
Yes
Suitable for built-in mounting
Yes
Suitable for wall mounting
Yes
Suitable for suspended mounting
Yes
Suitable for ceiling mounting
Yes
Suitable for traverse mounting
Yes
Suitable for pedestal/floor mounting
Yes
Suitable for light-track mounting
No
Suitable for clamp-mounting
Yes
Suitable for low voltage cable system
No
Adjustability
Swivelling
With light sensor
No
Lamp type
LED not exchangeable
With light source
Yes
Suitable for number of light sources
1
Housing material
Aluminium
Surface protection
Powder coating
Housing colour
Black
Material cover
Glass transparent
Surface brushed
No
Voltage type
AC
LED nominal current at constant current [mA]
430 - 430
Type of control gear
LED operating device current-controlled
With control gear
Yes
Exchangeable control gear
No
Dimming depending on control gear
No
Dimming 0-10 V
No
Dimming 1-10 V
No
Dimming DALI-2
No
Dimming DALI
No
Dimming DMX
No
Dimming DSI
No
Dimming potentiometer (integrated)
No
Dimming GPRS
No
Dimming LineSwitch
No
Dimming manufacturer's proprietary system
No
Dimming mains voltage modulation
No
Dimming phase cut-off (trailing edge)
No
Dimming phase cut-on (leading edge)
No
Dimming programmable
No
Dimming RF
No
Dimming Touch and Dim
No
Dimming Zigbee
No
Dimming with push-button
No
No dim function
Yes
Reflector
High-gloss
Light distributor
Reflector
Light distribution
Symmetric
Beam angle
> 80° - Extreme wide beam
Light outlet
Direct
Energy efficiency class of the built-in lamp
Other
Total harmonic distortion
30
Rated lifetime L70/B50 at 25 °C [h]
30000
Rated life time L80/B10 at 25 °C [h]
20000
Degree of protection (IP)
IP65
Degree of protection (NEMA)
4
Impact strength
IK06
Protection class according to IEC 61140
I
Rated ambient temperature according to IEC 62722-2-1 [°C]
-20 - 45
Suitable for lamp power [W]
100 - 100
Colour of light
Green
Emergency power supply system
None
Rated luminous flux according to IEC 62722-2-1 [lm]
8000
Luminous intensity [cd]
1050
Constant light output (CLO)
No
Colour of light adjustable
No
Luminous flux adjustable
No
Beam angle adjustable
No
Width [mm]
293
Height/depth [mm]
90
Length [mm]
293
Type of wiring
Ending
Conductor cross section [mm²]
0.75
Connection type
Other
Power factor
0.95
Emergency power supply integrated
No
Filament test according to IEC 60695-2-11
None
Luminaire efficacy [lm/W]
69
Photobiological safety according to EN 62471
RG0
Dimmable
No
Covering of the luminaire with thermally insulating material possible
Yes
Number of poles
3
Suitable for workplace according to EN 12464-1
Yes
Nominal current [mA]
430 - 430
Compatible with Apple HomeKit
No
Dimming Sine Wave Reduction
No
Compatible with Google Assistant
No
Compatible with Amazon Alexa
No
With presence detector
No
IFTTT support available
No
Operation by Bluetooth
No
Total harmonic distortion (THD) [%]
30
Rated luminous flux according to IEC 62722-2- 1 [lm]
-
Compatible with Casambi
No
UK Building Regs Part B fire rated - 30 minutes
No
UK Building Regs Part B fire rated - 60 minutes
No
UK Building Regs Part B fire rated - 90 minutes
No
Downloads
Manual
Manual_LedFloodlight_144971-01.pdf

Successor
LED Floodlight Colour 100W Green IP65

145751

Complementary articles
Surge Protection Device (SPD) 10KV 110-277V IP65

140440

Connector TH400 Tee 2-way Tube 3P

92100032104
