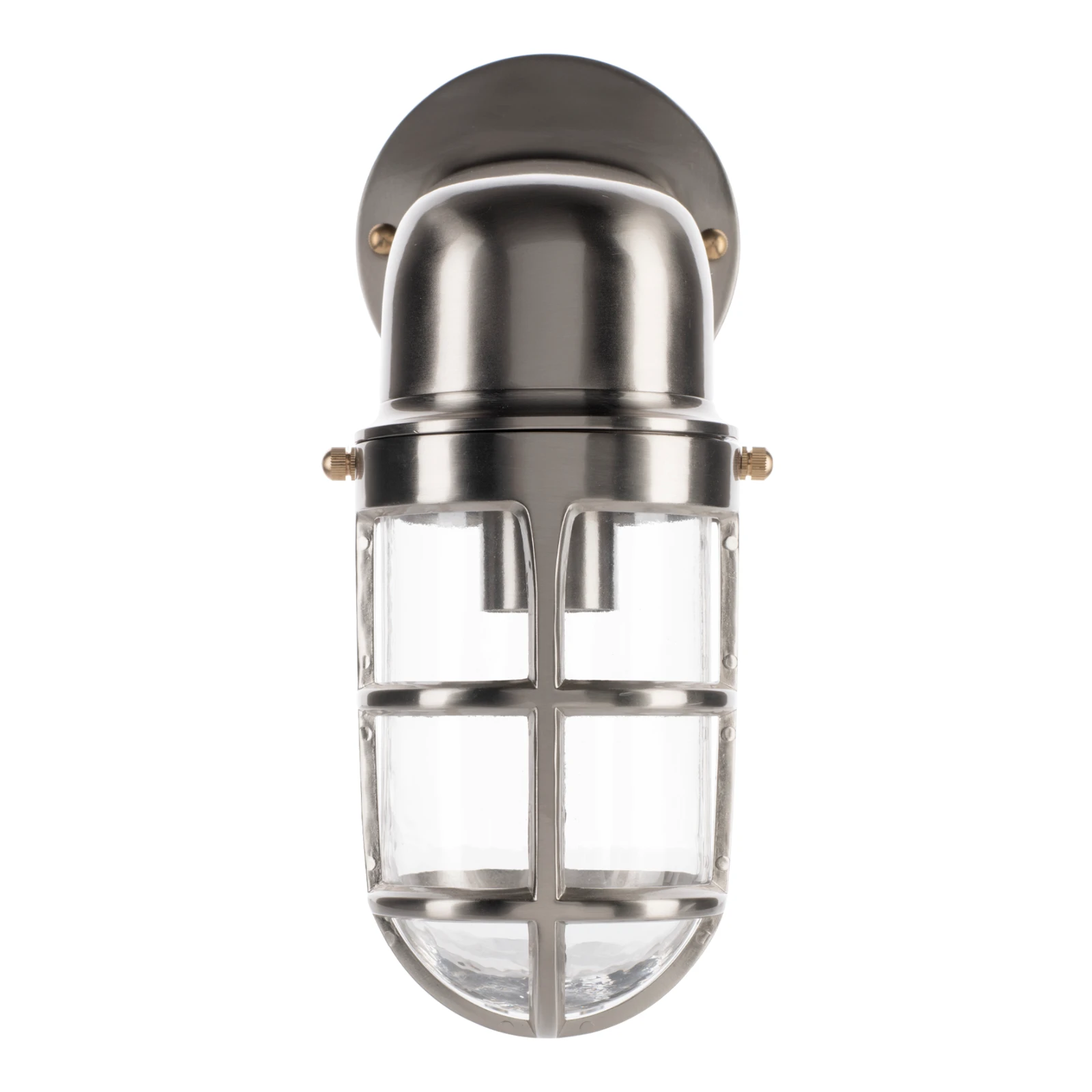

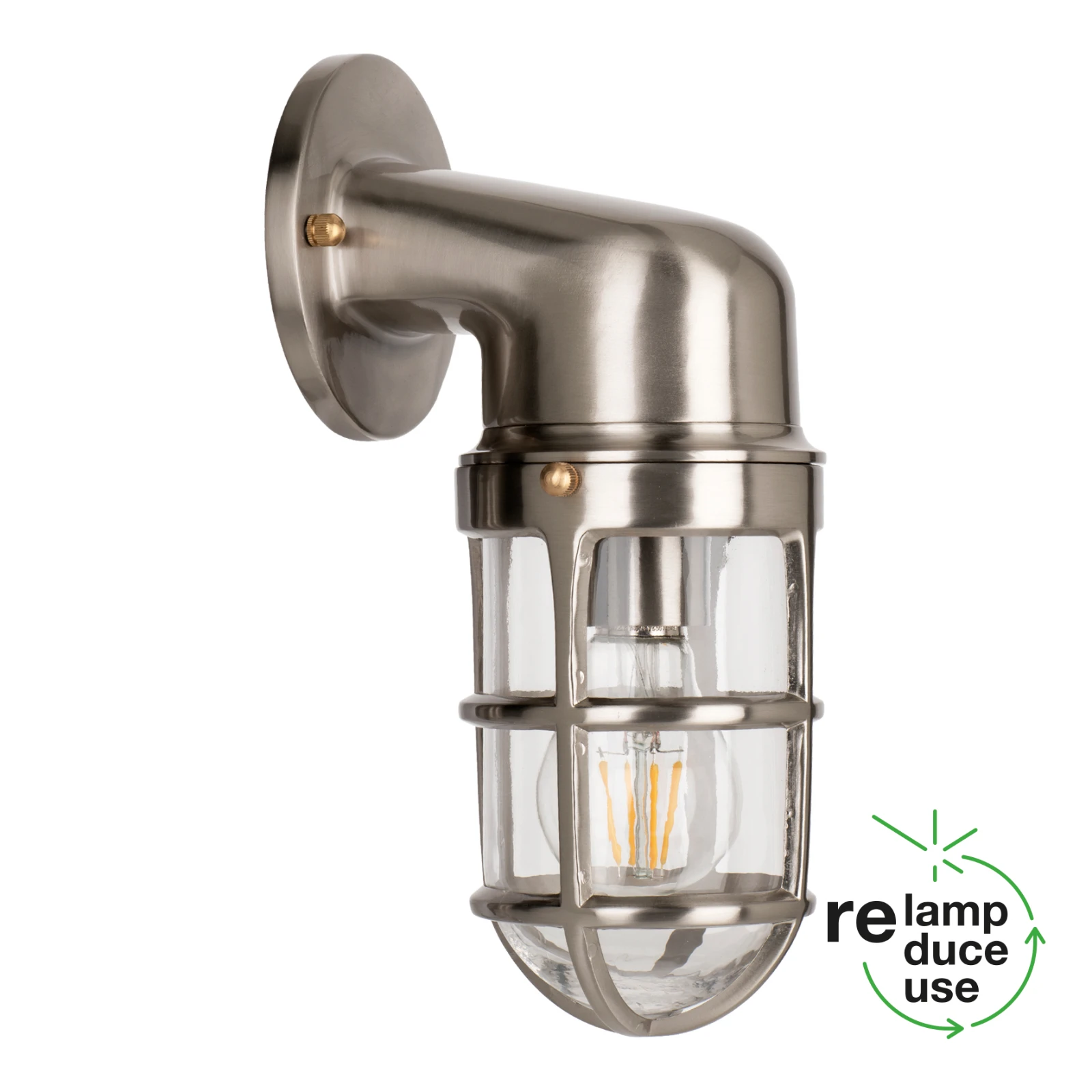

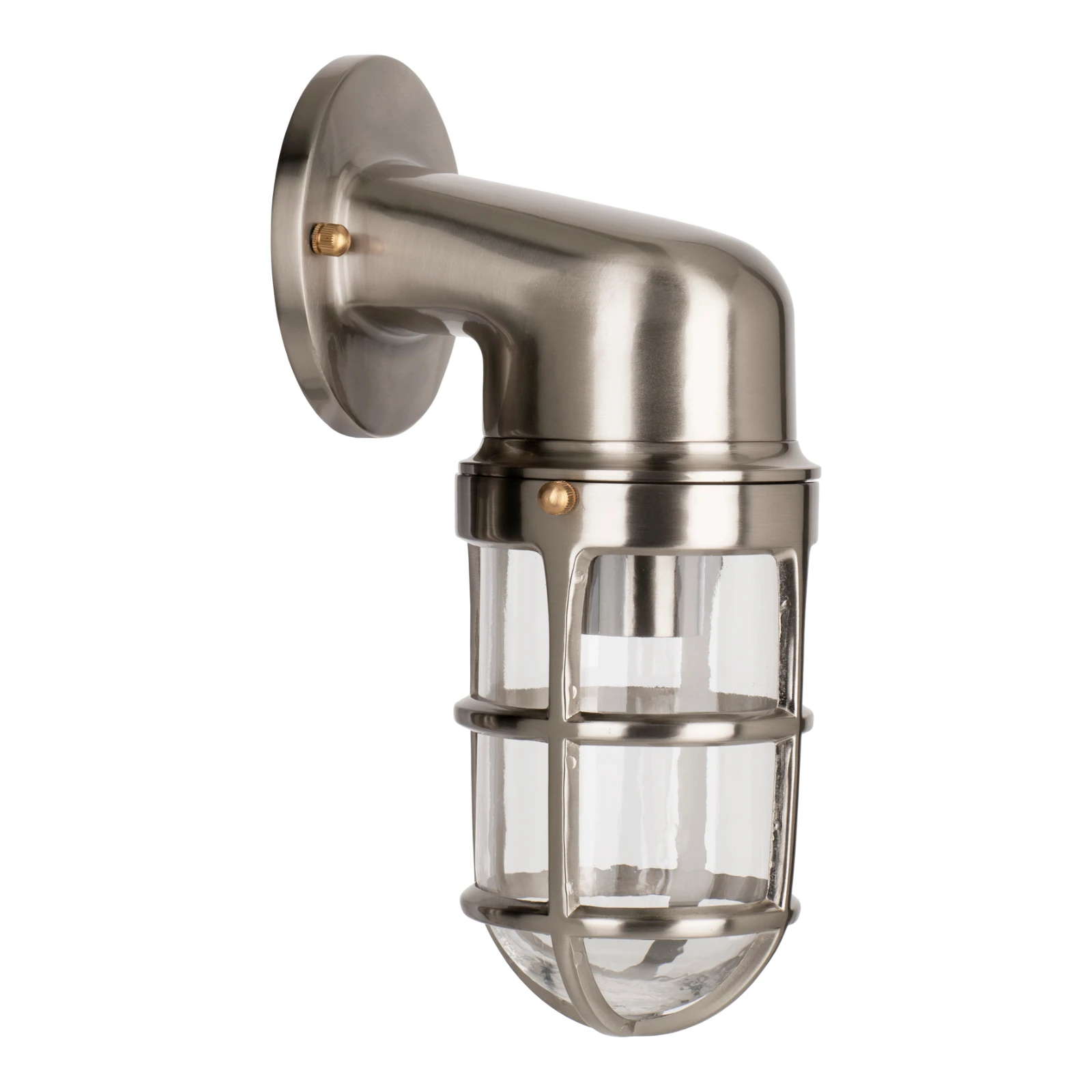

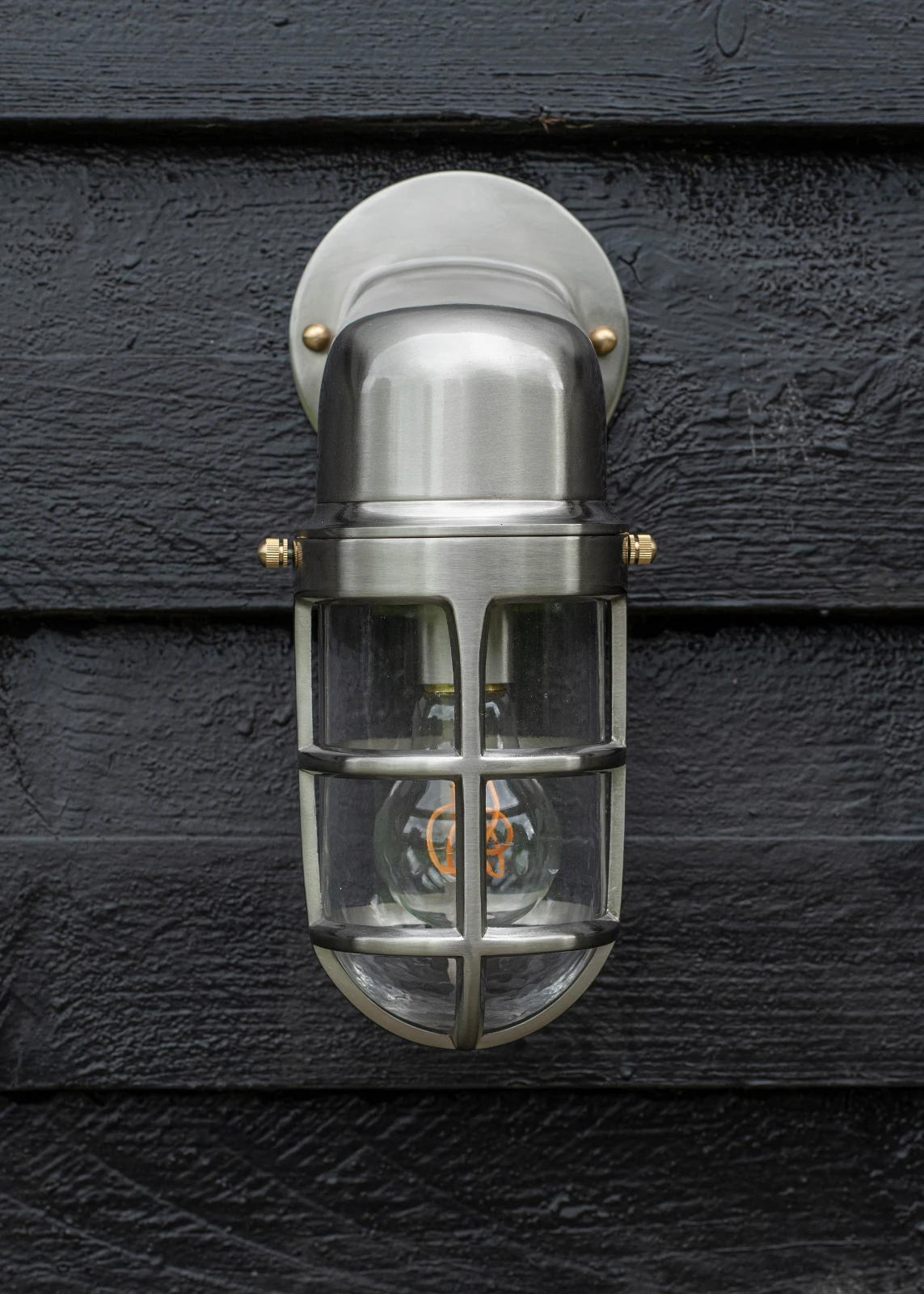

Lantern AHOI E27 Alu Nickel IP44

Article number: 144872

BAI Lantern AHOI Wall Lamp E27 Alu Nickel IP44 Outdoor CLI Max 60W Nostalgic ship lantern

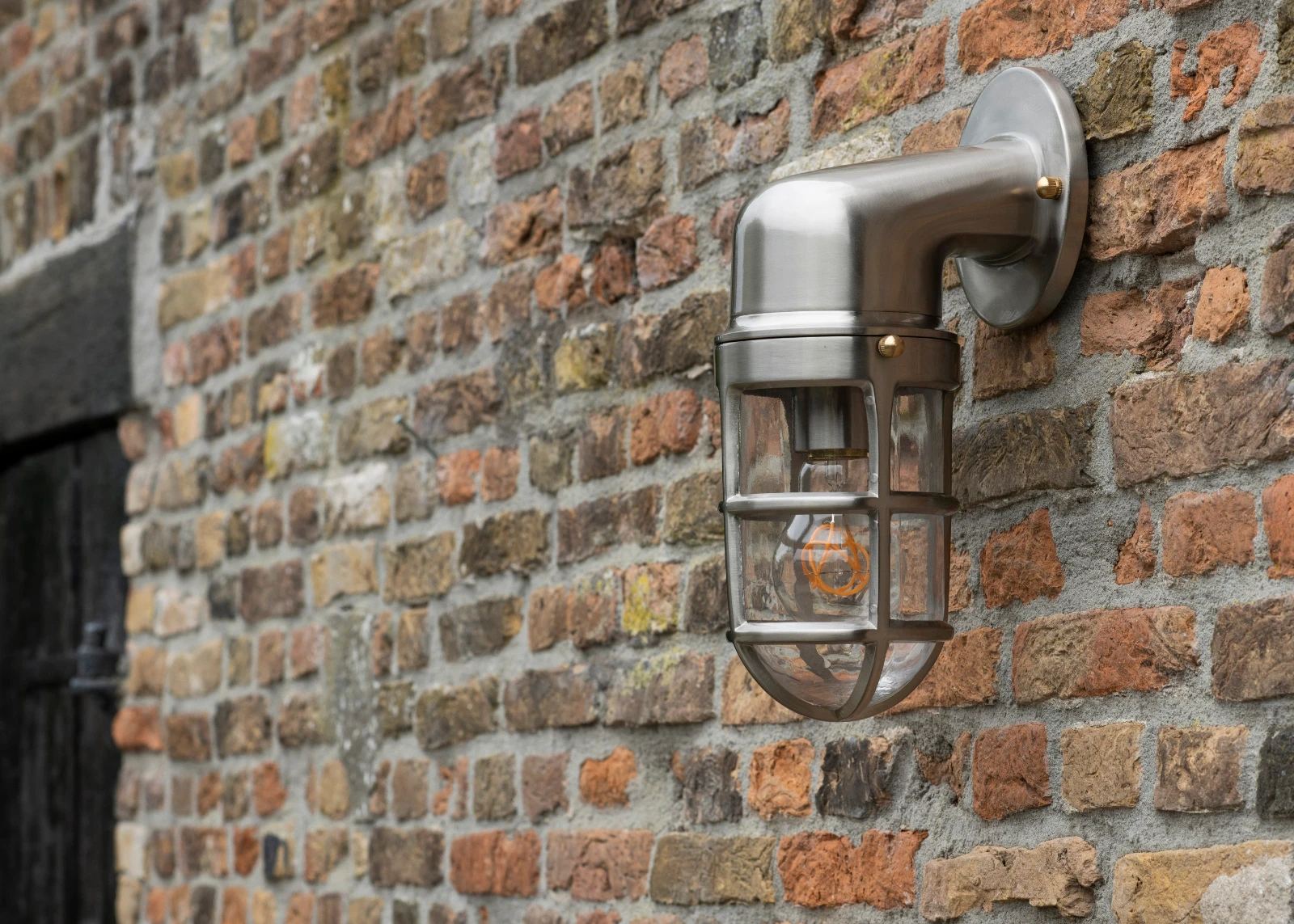

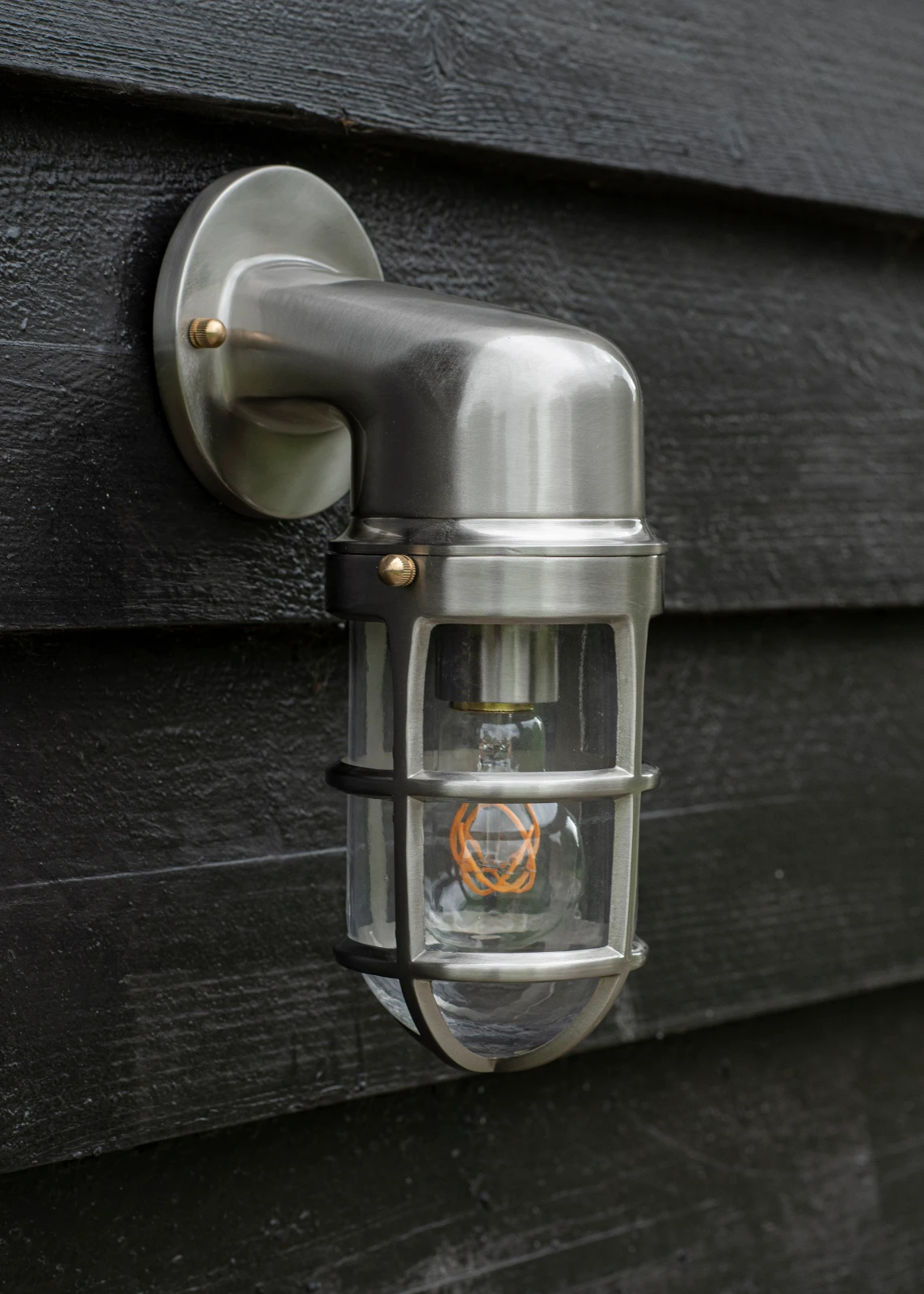

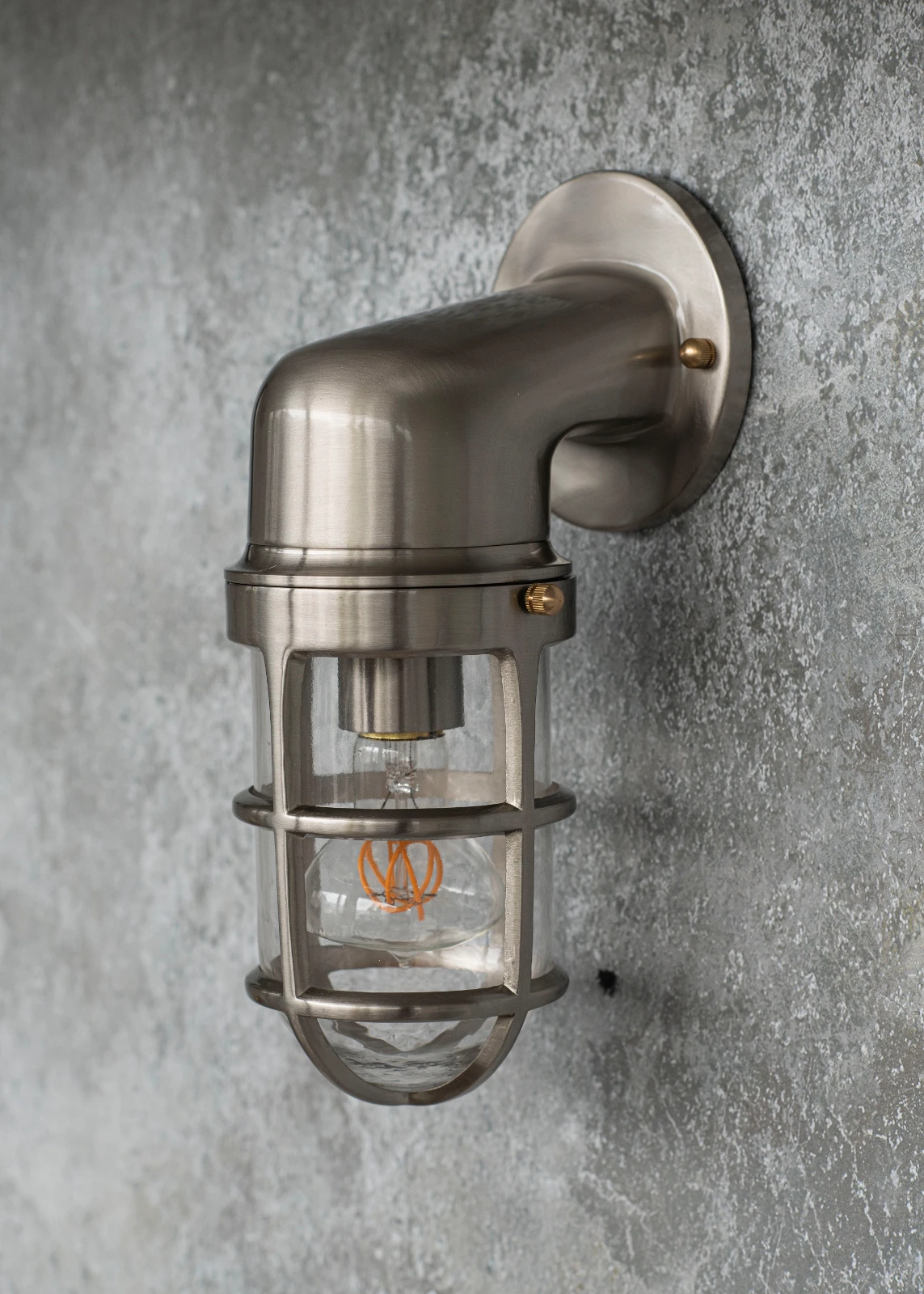

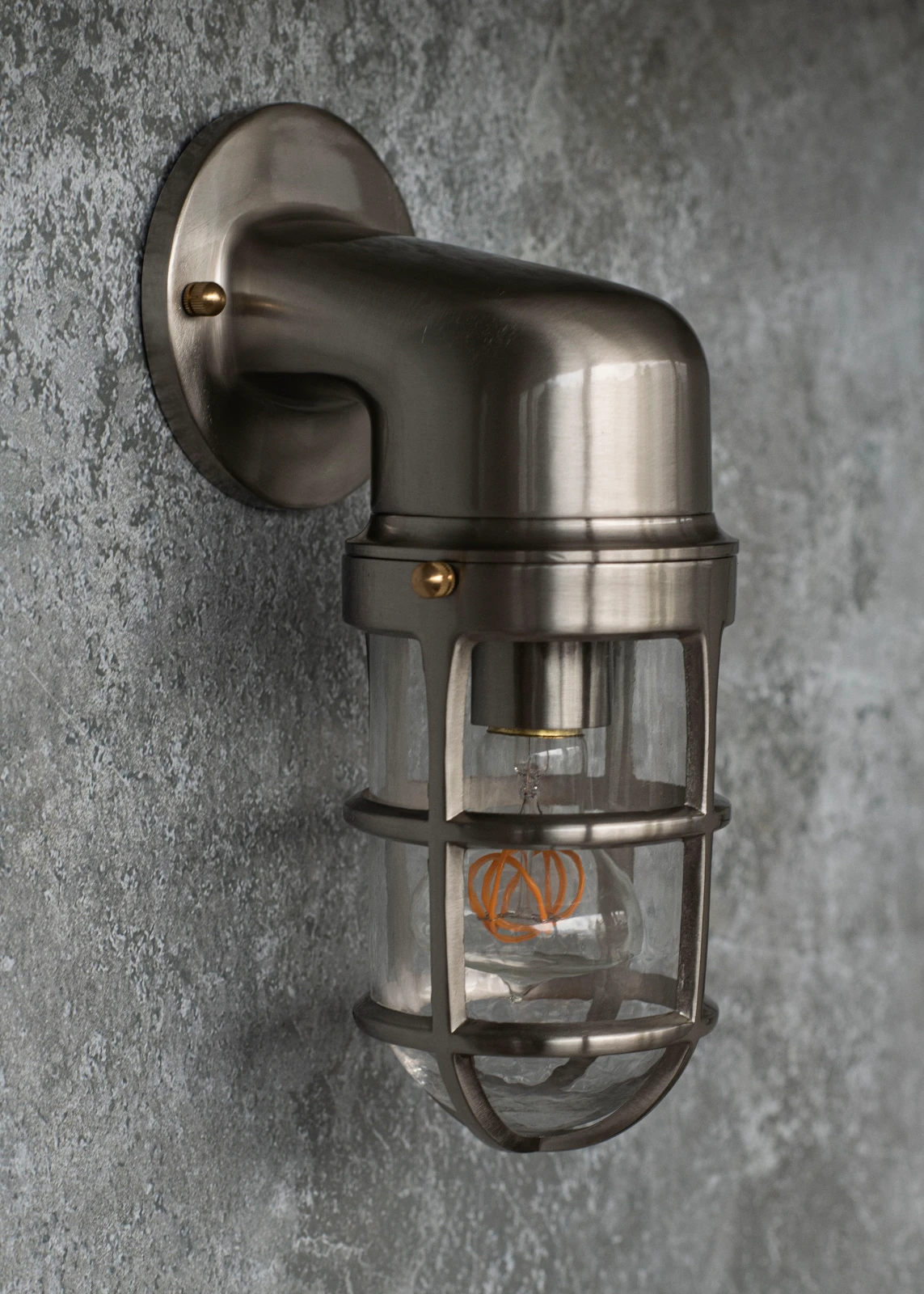

The nostalgic ship's lantern is back and has never been gone. This timeless lantern was originally attached to the cabin, but now adorns many industrial buildings with its retro look. Vintage materials are used to maintain the original ship look. Due to its waterproof nature (IP44), the fixture can be used both indoors and outdoors as a wall lamp. Corrosion category C3. The AHOI is supplied without a light source. To be used with E27 light source pointing downwards.

Please read the manual before use.

Data not available (yet). Please contact our sales department for more information.

Request a quote for this article

General ETIM properties

ETIM group
Luminaires
ETIM class
Ceiling-/wall luminaire
Name
Lantern AHOI E27 Alu Nickel IP44
Brand
Bailey
Productseries
BaiLum wall outdoor
Producttype
Lantern AHOI
GTIN
8714681448724
Manufacturer articlenumber
144872

ETIM specifications

Lamp holder
E27
Housing colour
Nickel
Degree of protection (IP)
IP44
With movement sensor
No
With light sensor
No
Width [mm]
120
Length [mm]
300
Nominal voltage [V]
12 - 240
Suitable for wall mounting
Yes
Impact strength
IK02
Dimmable
No
Suitable for suspended mounting
No
Suitable for ceiling mounting
Yes
Suitable for built-in mounting
No
Suitable for surface mounting
Yes
Suitable for light line configuration
No
Suitable for workplace according to EN 12464-1
No
Lamp type
LED exchangeable
With light source
No
Suitable for emergency lighting
No
Suitable for number of light sources
1
Housing material
Aluminium
Material cover
Structured glass
Type of grid
None
Voltage type
AC
Type of control gear
Not required
With control gear
No
Exchangeable control gear
No
Dimming 0-10 V
No
Dimming 1-10 V
No
Dimming DALI-2
No
Dimming DALI
No
Dimming DMX
No
Dimming DSI
No
Dimming potentiometer (integrated)
No
Dimming GPRS
No
Dimming LineSwitch
No
Dimming manufacturer's proprietary system
No
Dimming mains voltage modulation
No
Dimming phase cut-off (trailing edge)
No
Dimming phase cut-on (leading edge)
No
Dimming programmable
No
Dimming RF
No
Dimming Sine Wave Reduction
No
Dimming Touch and Dim
No
Dimming Zigbee
No
Dimming with push-button
No
Dimming depending on control gear
No
No dim function
Yes
Light distributor
None
Light distribution
Symmetric
Beam angle
Open beam/diffuse
Light outlet
Direct
Degree of protection (NEMA)
Other
Protection class according to IEC 61140
II
Luminaire with limited surface temperature, sign "D“ according to EN 60598-2-24
No
Emergency power supply integrated
No
Covering of the luminaire with thermally insulating material possible
No
With air slots
No
Filament test according to IEC 60695-2-11
None
Suitable for lamp power [W]
1 - 60
Max. system power [W]
60
Constant light output (CLO)
No
Height/depth [mm]
150
Outer diameter [mm]
110
Type of wiring
Ending
Number of poles
3
Conductor cross section [mm²]
0.75
Connection type
Screwed terminal
Colour of light adjustable
No
Luminous flux adjustable
No
Beam angle adjustable
No
Operation by Bluetooth
No
Compatible with Apple HomeKit
No
Compatible with Google Assistant
No
Compatible with Amazon Alexa
No
IFTTT support available
No
Suitable for wall mounting
Yes
Compatible with Casambi
No
Meets min. EIA lifetime criterion L90 (at 50,000 hours at tq = 25 °C)
No
Suitable for clamp-mounting
No
With mounting material
Yes
Containing product according to 2019/2020/EU
No
Degree of protection (IP), rear side
Other
Degree of protection (IP), front side
IP44
Emergency power supply system
None
Emergency function monitoring system
None
With switch
No
With presence detector
No
Ball-proof according to DIN 18032-3
No
