General ETIM properties

ETIM group
Lamps
ETIM class
Halogen metal halide reflector lamp
Name

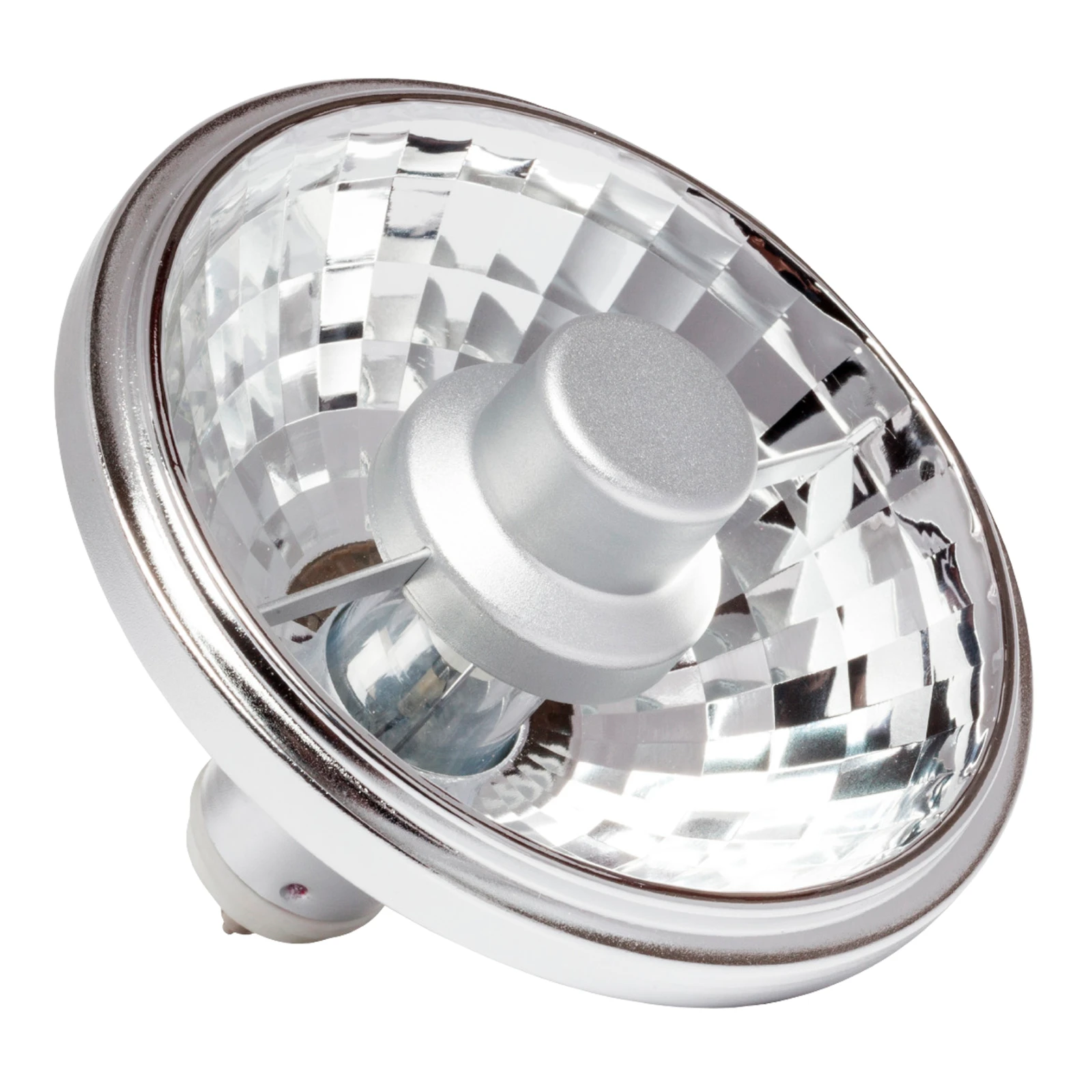

TUN CMH70 AR111 70W 930 GX8.5 24°
Brand
Tungsram
Productseries
CMH
Producttype
CMH AR111
GTIN
5994100019817
Manufacturer articlenumber
93104715

ETIM specifications

Socket
GX8.5
Lamp power [W]
70
Colour temperature [K]
3000
Beam angle [°]
24
Diameter [mm]
111
Total length [mm]
95
Luminous flux [lm]
3600
Colour rendering index CRI
80-89
Colour of light
930
Colour of light according to EN 12464-1
Warm white < 3300 K
Lamp designation
R111
Luminous intensity [cd]
18000
Lamp voltage [V]
95 - 95
Lamp efficacy [lm/W]
56
Material discharge tube
Ceramics
Burning position
Random
UV protection
Yes
Closed luminaire required
No
Suitable for electronic ballast
Yes
External ignitor required
Yes
External ballast required
Yes
Sun tanning lamp
No
Reflector type
Aluminium plated glass
Energy efficiency class
G
Weighted energy consumption in 1000 hours [kWh]
70
Average nominal lifetime [h]
10000
